How to Prepare Bleed in Canva for PrintGrid Pro

Prepare a 5x7 Canva invitation with bleed, set cutting guides in PrintGrid Pro, and check the size before printing and trimming.

For a 5 x 7-inch invitation with color at the edge, prepare a 5.25 x 7.25-inch design, including 0.125 inch of bleed on each side. Keep the background in that extra space, then use cutting guides to trim the card to its finished size.

Blue striped Night Before invitation displayed against a white chair — Finished-result mockup of the striped invitation used in this guide. Check the dimensions on your own test print.

Bleed, crop marks, and safe area

Bleed is background or artwork beyond the finished edge. You cut it away. It helps prevent an unwanted white strip if the cut moves slightly.

Crop marks, also called trim marks, are lines showing where to cut. They do not add missing background.

Safe area is space inside the finished edge. Keep names, dates, and important details comfortably inside it, away from the cut.

Already using Canva, Photopea, Photoshop, or Illustrator? Keep your design tool. Prepare the artwork there, then use PrintGrid Pro to arrange copies on the print sheet. The exact export controls differ between design tools.

1. Start with the finished size

Add the selected bleed twice to the width and twice to the height, once for each edge. For this example:

Finished card: 5 x 7 inches.
Bleed: 0.125 inch on each side.
Canva document: 5.25 x 7.25 inches.
Vertical guides from the left: 0.125 and 5.125 inches.
Horizontal guides from the top: 0.125 and 7.125 inches.

Create the document at the larger size. The 0.125-inch allowance is our example, not a universal requirement. Follow your print provider's specifications when using a print service.

Check: the area between the guides is 5 x 7 inches. The extra space sits outside that finished card.

2. Extend the background, not the whole design

In Canva on a computer, open File and find Show rulers and guides under Settings or Rulers and guides. Add the guides at the positions above.

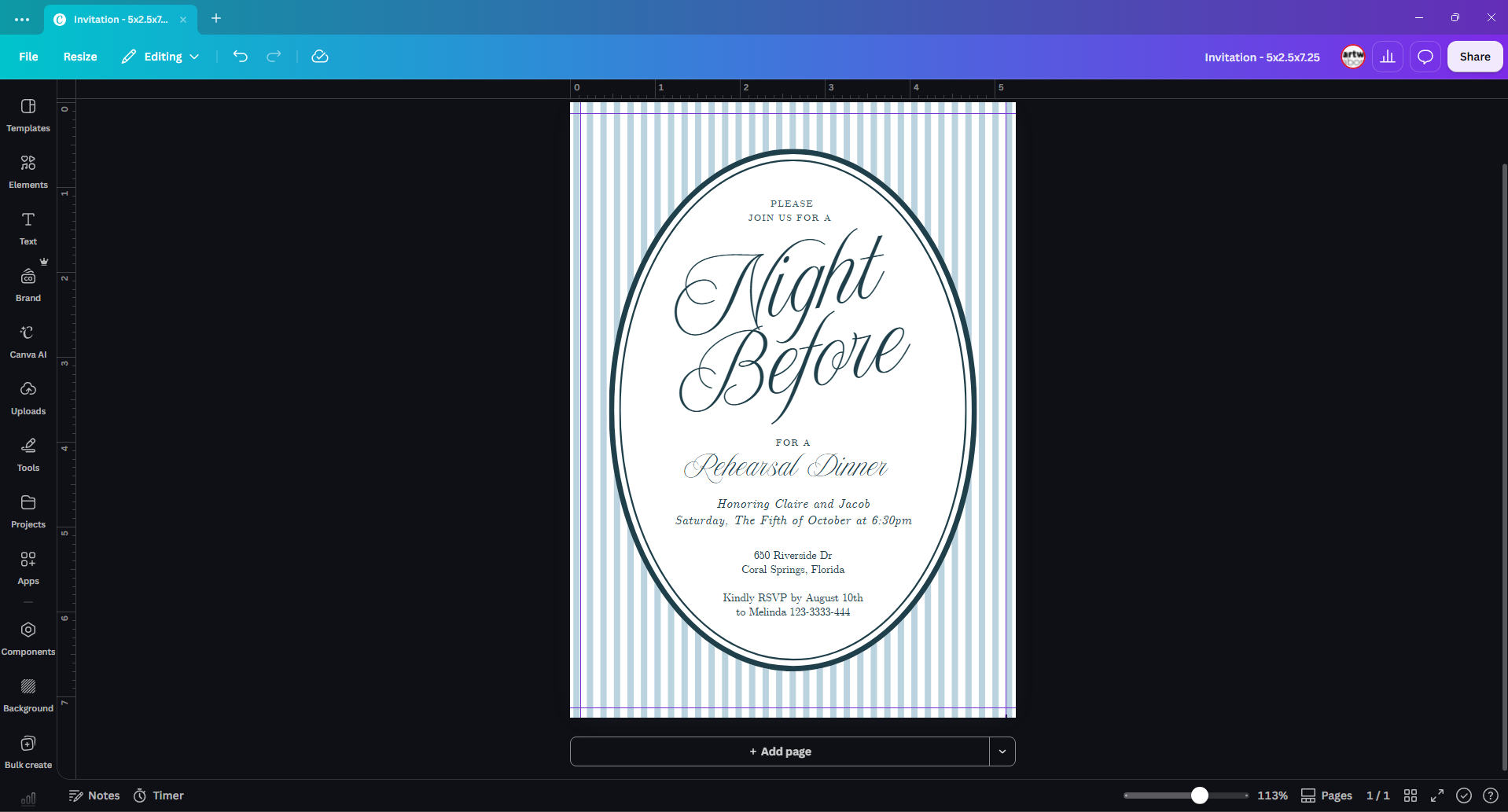

Canva invitation with rulers and purple guides inside the outer document edges — The purple guides mark the finished card inside the larger document. Keep the striped background all the way to the outer edges.

Extend every background or decoration that should reach the cut edge through the extra area. Keep text farther inside the guides; a trim guide is not a safe limit for text.

Incomplete bleed: striped background stops before the outer page edges — **Incomplete:** the stripes stop early, leaving a white outer band.

Complete bleed: striped background extends to all outer page edges — **Complete:** the same background continues to the document edges.

Check: there is no unintended white band outside an edge-reaching background.

Already have a 5 x 7-inch design?

Keep a copy of the original. Center its content in a new 5.25 x 7.25-inch document so the original 5 x 7-inch area sits between the guides. Extend the background into the extra space.

Do not enlarge the entire design just to fill the bigger page. That changes the text and decorations too. Check the content placement and the intended finished size.

3. Download without adding bleed twice

Canva Download panel with PDF, Print preset, and Crop marks and bleed switched off — In this Canva interface, choose PDF and the Print preset. Crop marks and bleed is off.

Open Share → Download. Choose PDF Print, or PDF with the Print preset as shown here.

Leave Crop marks and bleed off because the extra background is already inside the document. Click Download.

Check: this file should have a 5.25 x 7.25-inch page without another set of crop marks. Do not export a larger marked page and treat it as the same file.

Our supplied application screenshots use the PNG version of this same artwork. A PNG's detected size can be rounded or estimated, so confirm its physical dimensions. For PDF, check the exported page dimensions too.

When Canva's built-in bleed is useful

Canva's built-in option is useful when its output matches your printer or print service. Canva documents a standard 0.125 inch per side and fixed bleed and crop mark sizes. You can inspect bleed using Show print bleed; enabling the option alone does not guarantee that the artwork fills it. See Canva's guide to bleed and crop marks.

For this workflow, keeping bleed in the document lets you add the cutting guides while arranging the sheet in PrintGrid Pro. It also avoids carrying a second set of marks into each repeated design.

Why check the exported marks?

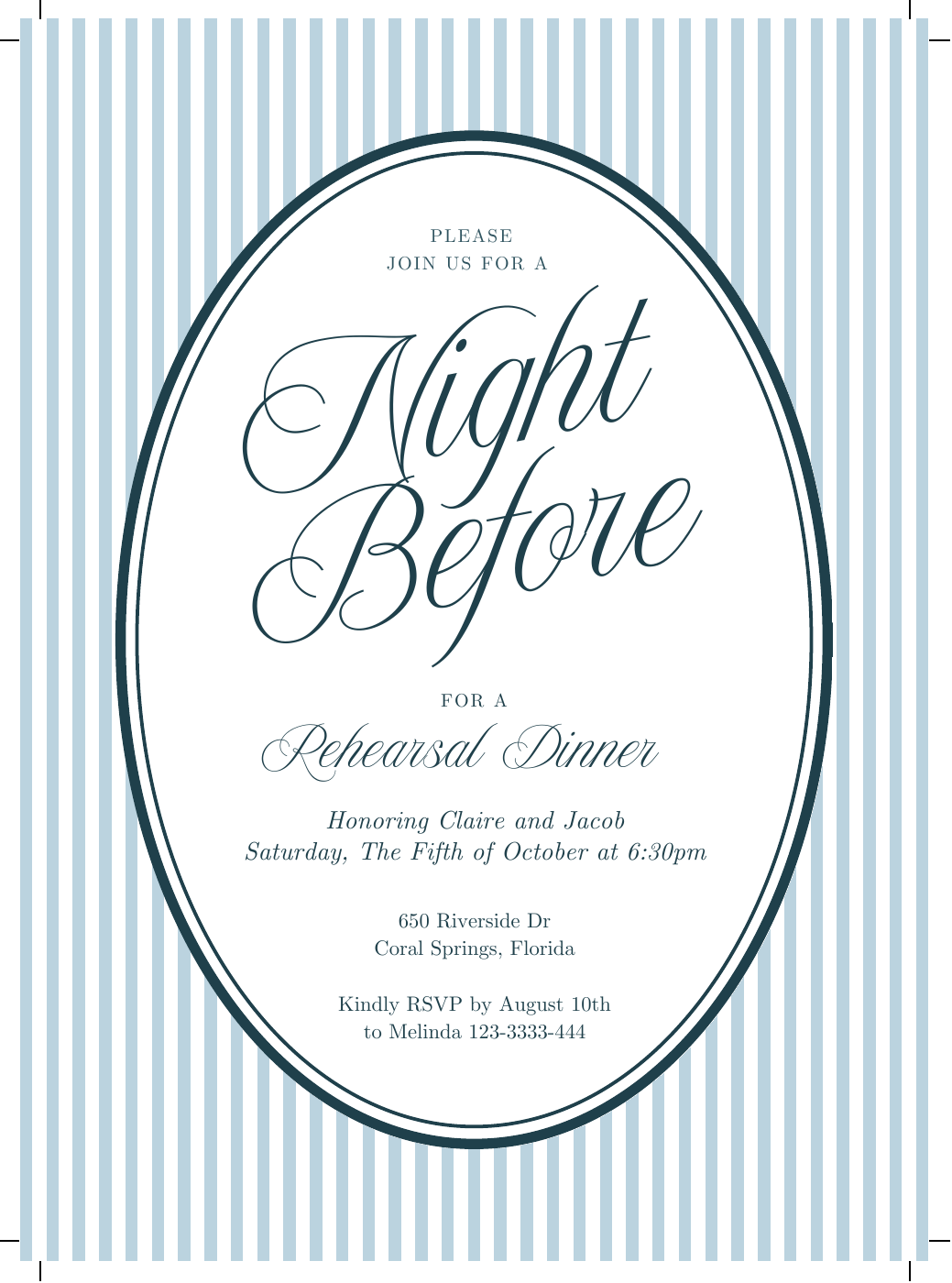

Actual Canva PDF rendering with black crop marks outside the striped invitation — Rendered from the supplied Canva export. Its full page is 5.75 x 7.75 inches; the crop marks enclose the already enlarged 5.25 x 7.25-inch document, not a 5 x 7-inch finished card.

This export demonstrates why you should not add Canva's marks and bleed again to a document that already includes your chosen bleed.

When you repeat a page containing marks, its surrounding space may require extra separation and cuts. Check the actual imported page rather than assuming every crop-marked PDF behaves the same way.

A mark can remain if the actual cut leaves part of it on the kept side. This is a reason to check its position, not a claim that Canva exports are always unsuitable.

Annotated illustration showing black crop-mark traces at the right corners of an invitation — Supplied illustration highlighting visible black marks at the corners. It explains what to look for; it is not a measured printer test.

4. Arrange the sheet in Web

Open PrintGrid Pro Web. Start with Flat, Repeat one, and Single-sided. Choose the Invitation 5 x 7 in preset, then upload the prepared artwork.

Confirm Design size: 5 x 7 inches. In Web this is the finished size, not the larger source document. Under Trim Guides, enter 0.125 in Bleed and select Marks.

The current Web field displays that value rounded to 0.13 after leaving the field. In our checked preview, entering 0.125 retained a 0.125-inch allowance and a 5 x 7-inch cut boundary. Do not use the slider to replace it with a different allowance.

Choose your paper and check the printable area. Our Web check used US Letter, Auto orientation, two copies, 0.15-inch margins, and zero gap. These are example settings, not a guarantee for every printer.

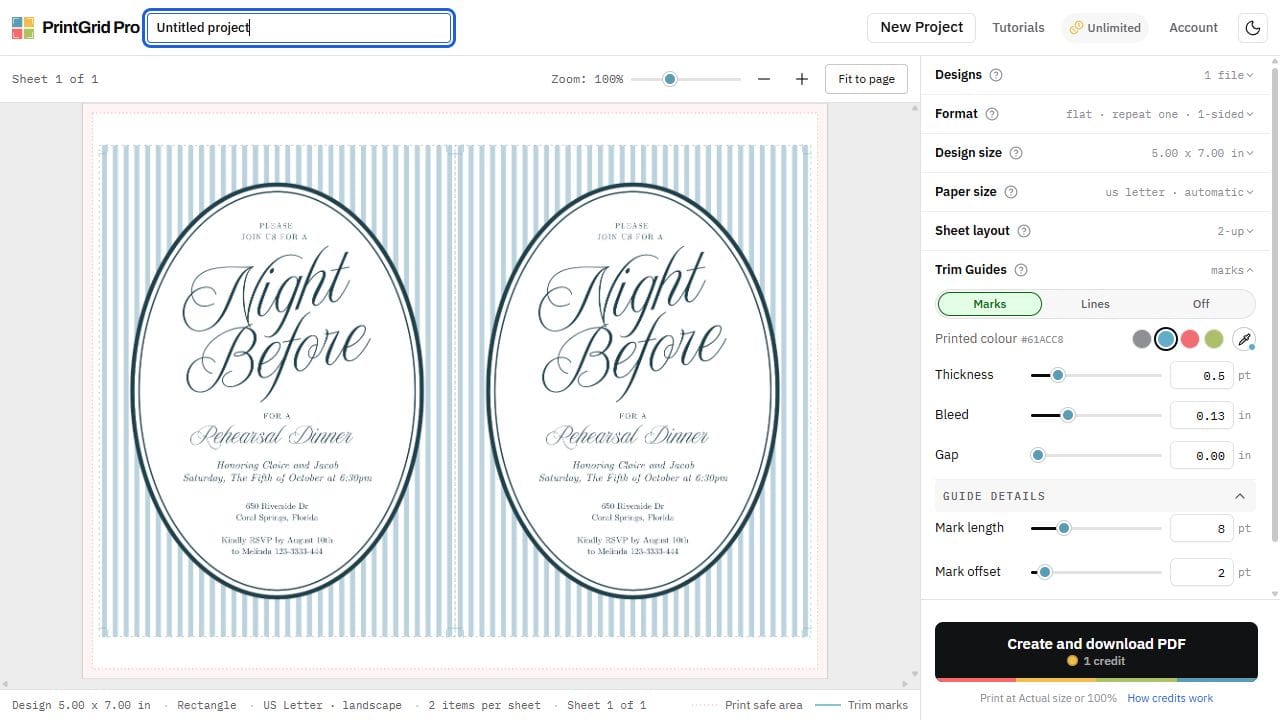

Verified Web preview of two invitations with 5 by 7 inch finished size and bleed controls — Checked with the supplied original: two cards on landscape Letter paper. The status bar shows a 5 x 7-inch finished design; the bleed field displays the entered 0.125 value rounded to two decimal places.

Use Printed colour and Thickness for the marks. Open Guide details for Mark length and Mark offset. The checked example uses cyan, 0.5 pt thickness, 8 pt length, and 2 pt offset.

Keep marks visible enough to guide cutting and outside the finished card. A color closer to the background may make a small trace less noticeable, but it does not fix a misplaced cut.

Check: the complete background extends beyond each cut boundary. All necessary marks and artwork must fit the printer's printable area. If two cards do not fit safely, use fewer per sheet or suitable paper/printer settings without shrinking the finished card.

Prefer to make the layout in Desktop?

Desktop can create the layout too. Its size is the full source design, including the bleed. For an exact 5 x 7-inch finished card with 0.125 inch on every side, confirm a full design size of 5.25 x 7.25 inches, then enter Bleed: 0.125 in.

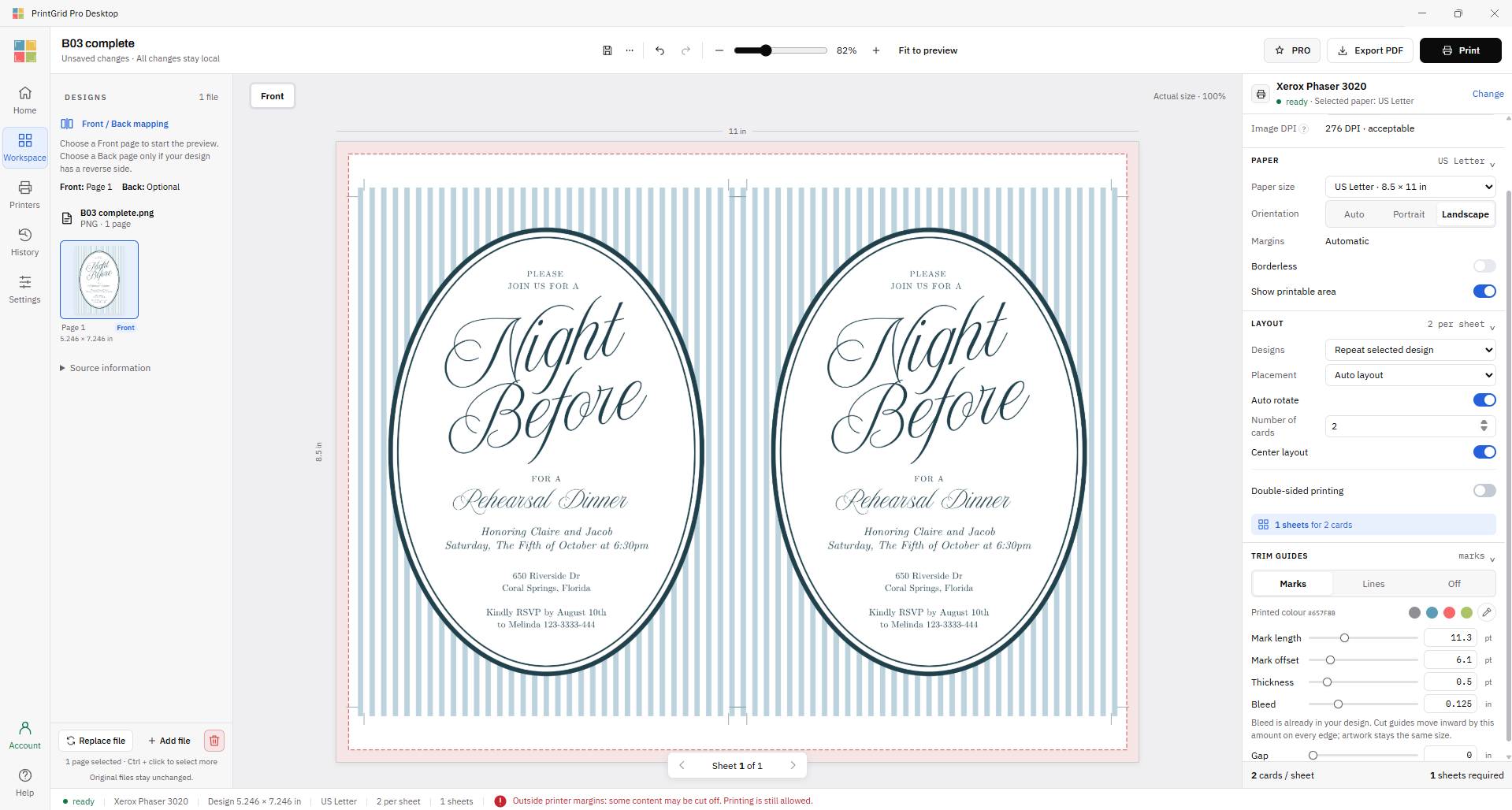

Desktop layout with two striped invitations, adjustable trim marks, 0.125 inch bleed, and a printer-margin warning — Desktop shows Mark length, Mark offset, Thickness, Printed colour and Bleed. This PNG is detected as about 5.246 x 7.246 inches, so confirm the intended full size. The screenshot also shows an outside-printer-margins warning that needs attention before printing.

Here, bleed moves the cuts inward from the design edges; it does not create missing background. Do not copy every pictured setting blindly. Adjust the layout so the required marks stay inside the printable area and keep the artwork at its intended size.

Creating this new layout or new cutting-guide output in Desktop is the optional Desktop Pro route. Printing an already arranged PDF is a different, free route.

5. Download the sheet and print the existing PDF

In Web, click Create and download PDF and review the shown export cost or access before continuing. Web exports use trial credits or paid access; they are not permanently unlimited for everyone.

Open the downloaded PDF and check the page size, both invitations, and their guides. That file is now a complete sheet. Do not arrange the two invitations again in the print dialog.

On Windows, PrintGrid Pro Desktop Free can print the existing PDF's page contents. You do not need Pro just to print marks and copies already present in that download. Another suitable PDF printing application can also print it.

Open the full-sheet PDF, not the original single-card artwork.
Select the matching paper and Actual size / 100%, not Fit or Fill.
Keep one existing PDF page per sheet. Do not add another multiple-pages-per-sheet layout.
If using Desktop, switch new Trim Guides to Off when the PDF already contains the guides you need.
Review printer warnings and print one test sheet on supported paper.

For more about these two routes, see Web vs. Desktop. The Desktop screenshot above shows the layout route, not this already-arranged-PDF printing step.

6. Cut away the bleed and check the result

Align the cuts with the crop marks, not the decorative oval. Follow your cutter's safety instructions and keep fingers clear of its blade.

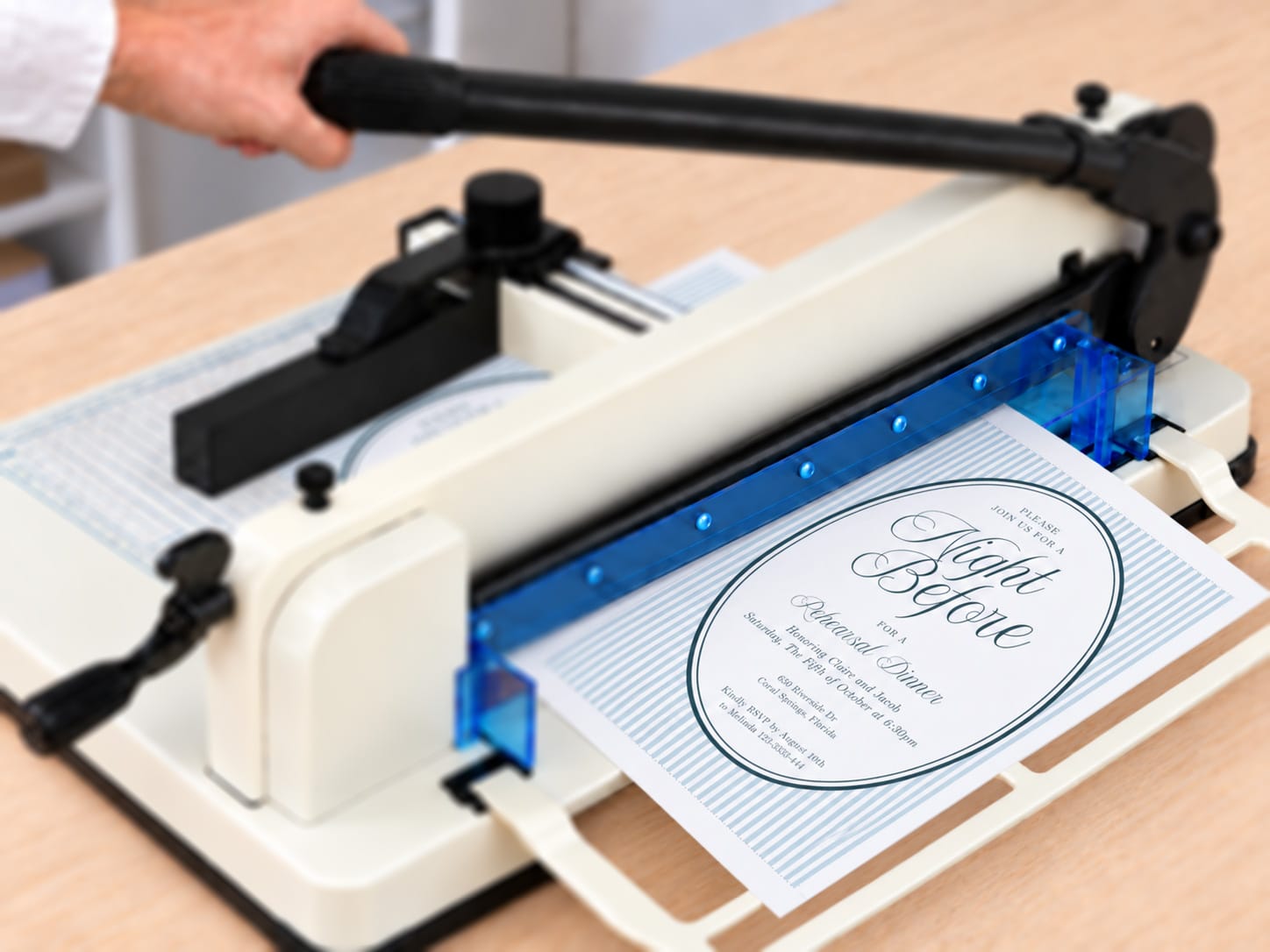

Supplied illustration of the striped invitation sheet on a guillotine cutter — Cutting illustration: remove the extra background along the marked boundaries.

Finished striped invitation mockup — Finished-result mockup: inspect the edges and measure your own trimmed card before making the rest.

Neighboring cards can share one cut only when their finished edges meet and the artwork and layout allow it. Matching backgrounds alone do not remove a gap. In the checked two-card bleed layout, a strip remains between the finished edges and must be removed.

When you can skip bleed

On white paper, a white-background design does not need bleed if no artwork reaches the finished edge and all content is safely away from the cut. This applies to invitations, place cards, and other designs. Crop marks can still help you cut.

White invitation mockup with black text and an inset black border — A separate no-bleed example: the text and border sit inside a white outer margin. This is not the colored-edge design used in the steps above.

If something looks wrong

A white strip appears after cutting

Check whether the background reached the outside of the document, whether the correct bleed was used, and where the cut landed.

The card is the wrong size

Check the difference between Web's finished size and Desktop's full design size. Then check the exported page and Actual size / 100% printing. Do not judge physical size from screen zoom.

A black or colored mark remains

Check the mark's position relative to the intended cut and the actual cut. Changing its color alone will not fix placement.

Only one invitation fits

Keep the finished card size. Check orientation, margins, gaps, bleed, and room for guides. Do not ignore a printer-margin warning to force another card onto the sheet.

Once your test card has the right size and clean edges, use those confirmed settings for the remaining sheets.
